High Pressure PU hose, PU Braid Hose - PU Braid Hose
High Pressure PU Hose

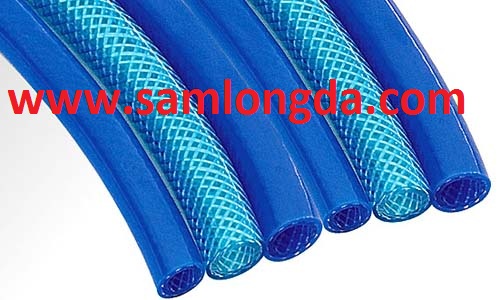

PU Braid Hose

*High working pressure to 20bar !

*100% new materail !

*Flexible hose, Inside 90A, Outside 85A are available.

*Other hardness: Inside 95A, outside layer 90A.



 Chanle hose and Samlongda company  design the High quality Polyurethane  Braid reinforced hose which is exporting to Germany for compressed air system.

Polyurethane Braid Reinforced Hoses are designed for high quality pneumatic system, high pressure compressors and air tools and so on.



Working pressure: 15bar ---20bar,
Burst pressure: 60bar
Temperature Range: -20--+60º C

Colors available: Blue, Red, Black, Transparent, etc.

Asia type quick coupler, NPT fittings are available.

Length: 30m,50m,100m





Code Size(mm) Tolerances Standard Length(m) Working Pressure @ 23ºC Burst Pressurre @ 23ºC
O.D I.D

PUB0805

8

5

±0.10

100

15

50

PUB1065

10

6.5

±0.10

100

20

60

PUB1165

11

6.5

±0.10

100

20

60

PUB1208

12

8

±0.12

100

20

45

PUB1410

14

10

±0.15

100

15

45

PUB1612

16

12

±0.15

100

12

36



Normal PU tube, please click   PU tube     for more information.
