High Pressure PU hose, PU Braid Hose - High Pressure PU Hose

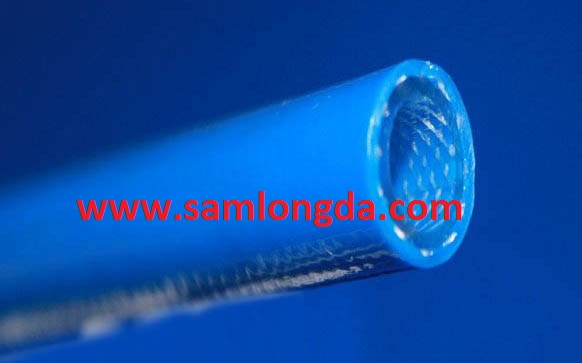

Polyurethane Reinforced Hose

High Pressure PU Hose

* working pressure to 20bar, Bursting pressure up to 60bar.

*With 100% viginal PU material.

*High flexible

*Smooth and shinny surface !

APPLICATION: For conveying air, gas/oil at pneumatic industry, air compressors, Auto Hose Reel and agriculture with high pressure requirements.
Colors available: Blue, Transparent, etc.
Working pressure: 15bar ---20bar,
Burst pressure: 60bar
Temperature Range: -20--+60º C





Code Size(mm) Tolerances Standard Length(m) Working Pressure @ 23ºC Burst Pressurre @ 23ºC
O.D I.D
PUB0805 8 5 ±0.10 100 15 50
PUB1065 10 6.5 ±0.10 100 20 60
PUB1165 11 6.5 ±0.10 100 20 60
PUB1208 12 8 ±0.12 100 15 45
PUB1410 14 10 ±0.15 100 15 45
PUB1612 16 12 ±0.15 100 12 36
