*Ether Based TPU !

*Water resistant.

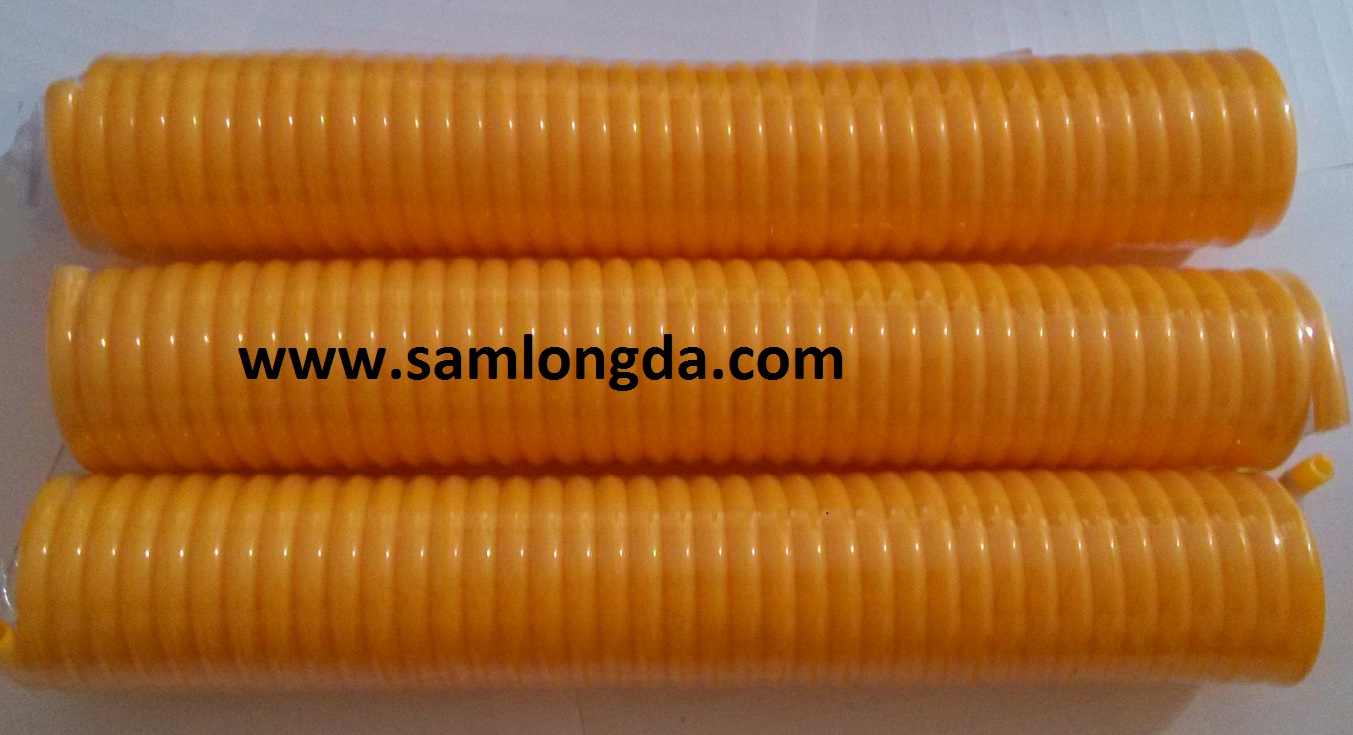

Samlongda and Chanle hose company manufacture 100% brand new Pneumatic Ether Based PU tube. Also called Ether Polyurethane tubing for Pneumatic industry robot.

Ether PU air hose Feature:

1. Flexibility of Polyurethane tubing is still good under very low temperature, good elasticity.

2. Pretty high intensity, abrasion resistant and long service life, Small bending radius.

3. Light weight, high grade of transparency, anti-corrosion on partly chemical material, New products have hydrolysis resistant on Ether based PU air hose.

4. The working temperature -20 to +70 degree.

5. Inner Wall of Polyurethane tube is very smooth for transport.

6. Hardness 95± 2A, 98± 2A

7. PU hose is environmental material, our PU tube reach SGS standards!

8. PU tube / Pneumatic tubing are Widely used in Pneumatic automation system, Air tools.

9. Pneumatic fittings, NPT /BSPT fittings, Swivel coupler, Miltom type quick coupler are all available on our polyurethane PU spiral hose.

10. Size: OD4mm*ID2.5mm, OD6mm*ID4mm, OD8mm*ID5mm, OD10mm*ID6.5mm, OD12mm*ID8mm, OD14mm*ID10mm, OD16mm*ID12mm.

Other Clear Yellow, Clear Green, Clear Orange of Pneumaic TPU hose are acceptable for OEM serice, contact samlongda for quotation today!

Code	Size(mm)		Tolerances	Standard Length(m)	Working Pressure @ 23ºC	Burst Pressurre @ 23ºC	Min Bend Radii
	O.D	I.D
PUE0425	4	2.5	±0.10	200	10	35	12
PUE0604	6	4	±0.10	200	10	35	15
PUE0805	8	5	±0.10	100	10	35	19
PUE0806	8	6	±0.10	100	8	30	19
PUE1065	10	6.5	±0.10	100	10	35	25
PUE1208	12	8	±0.12	100	10	35	38
PUE1410	14	10	±0.15	100	8	30	60
PUE1612	16	12	±0.15	100	7	25	70
