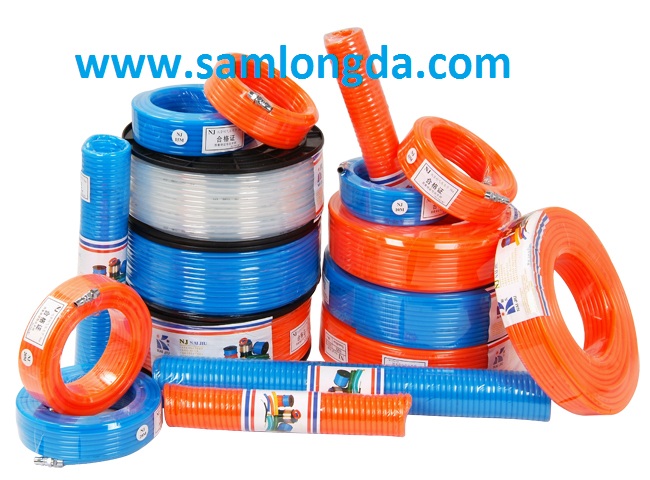

PU air hose

Air Tubing
Samlongda manufacture 100% brand new Pneumatic PU tube. Also called Polyurethane tubing for Pneumatic industry robot.

PU air hose Feature:

1. Flexibility of Polyurethane tubing is still good under very low temperature, good elasticity.

2. Pretty high intensity, abrasion resistant and long service life, Small bending radius.

3. Light weight, high grade of transparency, anti-corrosion on partly chemical material, New products have hydrolysis resistant on Ether based PU air hose.

4. The working temperature -20 to +70 degree.

5. Inner Wall of Polyurethane tube is very smooth for transport.

6. Hardness 95± 2A, 98± 2A

7. PU hose is environmental material, our PU tube reach SGS standards!

8. PU tube / Pneumatic tubing are Widely used in Pneumatic automation system, Air tools.


Samlongda now is taking OEM service for Europe Top 500 company for PU tubing, layflat hose,hose reel etc.

We insist the 100% vergin brand new material and supplying high working pressure tubing for automation industry.



Code Size(mm) Tolerances Standard Length(m) Working Pressure @ 23ºC Burst Pressurre @ 23ºC Min Bend Radii
O.D I.D
PU0425 4 2.5 ±0.10 200 10 35 12
PU0604 6 4 ±0.10 200 10 35 15
PU0805 8 5 ±0.10 100 10 35 19
PU0806 8 6 ±0.10 100 8 30 19
PU1065 10 6.5 ±0.10 100 10 35 25
PU1208 12 8 ±0.12 100 10 35 38
PU1410 14 10 ±0.15 100 8 30 60
PU1612 16 12 ±0.15 100 7 25 70


For more  information.  Please contact us or visit our showroom on made-in- china.com


OEM service is welcomed by Samlongda factory !
