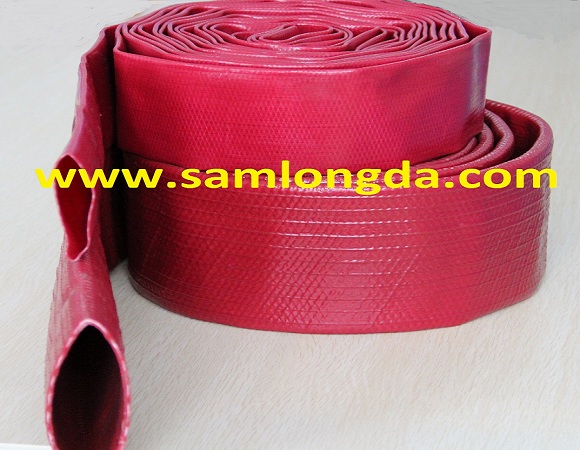

PVC layflat pipe

PVC layflat pipe
High working pressure reach 10 bar.

100% new mateial with high quality

Economic duty , Medium duty , Heavy duty are available.

Welcome to take OEM service.


Samlongda PVC layflat pipe have feature as below:

*Extruded by one time, Weaved Structure with high tensile polyester yarn.

*Light Weight 10-50% than traditional layflat hose,Easy to handle.

*Abrasion resistant increase about 50% with long life service.

*Material:100% new and high quality PVC resin.

*Higher working pressure, up to 10bar at heavy duty hose.
Model Size  Thickness Weight  W.P. B.P.
Inch mm mm g/m bar bar
Economic     duty layflat  1" 26 1.3 150 4 12
1-1/4" 33 1.2 170 4 12
1-1/2" 41 1.25 205 5 15
2" 53 1 230 4 12
2.5" 66 1.15 320 4 12
3" 78 1.1 360 4 12
4" 104 1.3 550 4 12
5" 128 1.35 750 4 12
6" 155 1.4 900 4 12
8" 202 2 1785 3 9
10" 250 2.65 2650 2.5 7.5
12" 302 2.55 3100 2 6
Model Size  Thickness Weight  W.P. B.P.
Inch mm mm g/m bar bar
Medium       Duty layflat 3/4" 20 1.35 112 7 21
1" 26 1.4 165 7 21
1-1/4" 33 1.3 190 7 21
1-1/2" 41 1.3 230 7 21
2" 53 1.3 300 6 18
2.5" 66 1.7 430 7 21
3" 78 1.45 500 6 18
4" 104 2.3 865 6 18
5" 128 2.3 1080 6 18
6" 155 2.4 1600 6 18
8" 202 2.65 2020 4 12
Model Size  Thickness Weight  W.P. B.P.
Inch mm mm g/m bar bar
Heavy          Duty layflat 3/4" 20 1.55 140 10.5 31.5
1" 26 1.7 200 10.5 31.5
1-1/4" 33 1.45 210 10.5 31.5
1-1/2" 41 1.9 290 10.5 31.5
1-3/4" 45 1.6 320 8 24
1-3/4" 45 2 350 10.5 31.5
2" 53 1.5 350 8 24
2" 53 2.05 420 10.5 31.5
2.5" 66 2.2 650 10.5 31.5
3" 78 2.5 850 10 30
4" 104 2.5 1000 9 27
5" 127 3.1 1800 8 24
6" 155 3.3 2000 8 24
8" 202
