PVC Hose,Layflat Hose, Steel wire hose - Braid hose

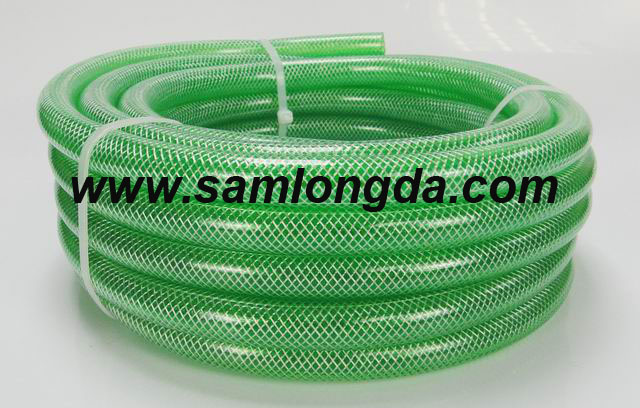

PVC Braid hose

Braid hose
Samlongda Flexible PVC braid hose with high grade stregth polyester yarn reinforcement, transparent, durable, high performance pressure and weather resistant.



*Super flexibility in low temperature.
* Corrosion and abrasion resistant.
* Light, durability and flexible with good weather resistance.
*Japan Quality PVC braid hose.
*Temperature: -10 centigrade degree to +65 centigrade degree.

*Super low temperature hose are available at samlongda factory. Contact us for best price.


SPECIFICATION

· Super flexibility in low temperature.
· Corrosion and abrasion resistant feature in our PVC braid hose.
· Light, durability and flexible with good weather resistance.
· Multipurpose application hose for conveying water, air, powder in factory, industry, agriculture, construction and so on.
· Temperature: From -10° C to +65° C

· High quality and FDA pvc hose are available here.


PVC Braid hose data as below, other sizes, thickness could be customerized in our factory.


Code Size   Length W.P. Tolerances
ID OD m bar MM
PVC1106 6 11 100 20 ±0.10
PVC13508 8 13.5 100 18 ±0.1
PVC1509 9 15 100 15 ±0.10
PVC1610 10 16 100 12 ±0.10
PVC1812 12 18 100 12 ±0.12
PVC2215 15 22 100 12 ±0.15
PVC2619 19 26 100 10 ±0.15
PVC3325 25 33 50 10 ±0.15
PVC4132 32 41 50 10 ±0.2
PVC4838 38 48 50 8 ±0.2
PVC6052 50 62 50 6 ±0.2
