pneumatic tubing, air hoses, PU tube, Polyurethane tubes, Coil air hose - Clear PU Tube
Transparent Blue Hose

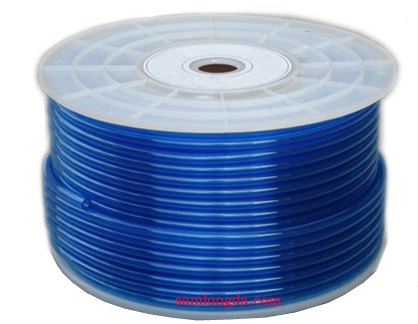

Clear PU Tube

 Transparent colour : Avoid the supplier take recycle material to produce precision PU tubing.

*Exporting to North American, UK, Sweden country with bulk quantities.

*Transparent Blue, Transparent Green, Transparent yellow colour is available.


PU tubing or Polyurethane tubing are also called Pneumatic tubing.

Samlongda PU tube have following feature:

1. Flexibility of Polyurethane tubing is still good under very low temperature,good elasticity.

2.Pretty high intensity abrasion resistant  and long service life,Small bending radius.

3.Light weight ,high grade of transparency ,anti-corrosion on partly chemical material, New products have hydrolysis resistant.

4.The working temperature -20 to +70 .

5.Inner Wall of PU tubing  is very smooth for transport.

6.Hardness 95±2A,98±2A

7.PU is environmental material, our PU tubes reach SGS standards!

8. Widely used in Pneumatic automation system, Air tools.

9. Pneumatic fittings, NPT /BSPT fittings, Brass Swivel coupler, Miltom type quick coupler are all available.



Code

Size(mm)

Tolerances

Standard Length(m)

Working Pressure @ 23ºC

Burst Pressurre @ 23ºC

Min Bend Radii

O.D

I.D

PU0425

4

2.5

±0.10

200

10

35

12

PU0604

6

4

±0.10

200

10

35

15

PU0805

8

5

±0.10

100

10

35

19

PU0806

8

6

±0.10

100

8

30

19

PU1065

10

6.5

±0.10

100

10

35

25

PU1208

12

8

±0.12

100

10

35

38

PU1410

14

10

±0.15

100

8

30

60

PU1612

16

12

±0.15

100

7

25

70
