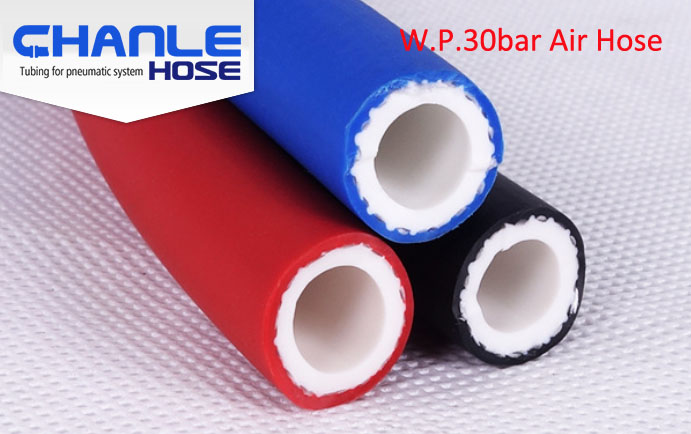

* improved PVC and rubber polymer material.

*Staying flexible and easy to work with, even in the cold weather.

*Super small bend radio.

*Full woven structure yarn reinforced.

Max working pressure 30bar/ 435psi.

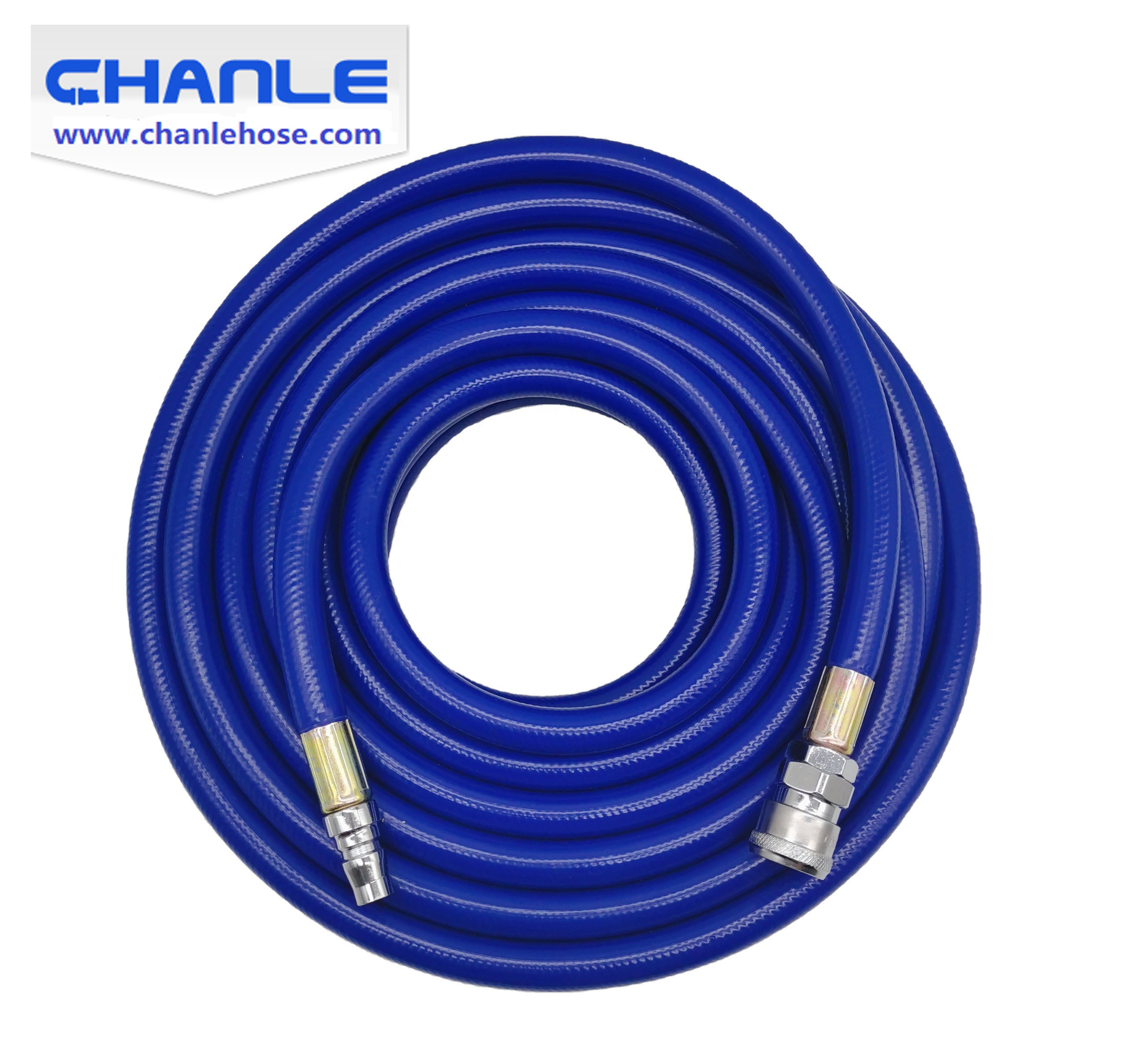

Coupling: Asia type SH/PH quick coupling, hose barbs, American type coupling, Europe quick couplings etc.

Feature: Keep flexibility in cool temperature. Zero memory when blend.

Good hose to replace rubber air hose or PVC air hose where is too stiff on installing.

Contact China top supplier on hybrid air hose.

Code	Size		Length	W.P.	Tolerances
	ID	OD	m	bar	MM
AH612	6	12	100	35	±0.15
AH814	8	14	100	35	±0.15
AH8514	8.5	14	100	30	±1.5
AH1016	10	16	100	30	±0.15
AH612	13	20	100	25	±0.15
AH612	15	22	100	25	±1.5
AH612	19	26	100	22	±0.15
