Flame Resistance Tubing - Flame resistant tube
anti spatter tube

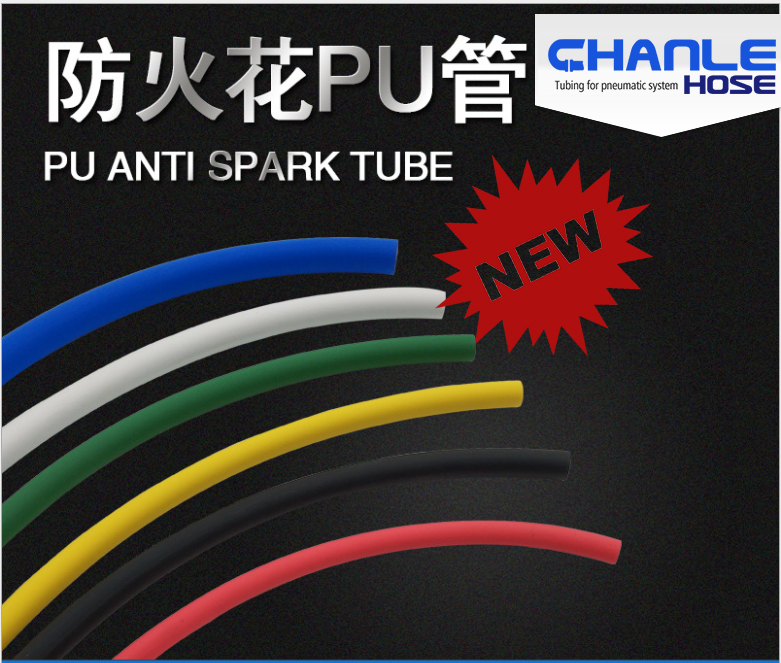

Flame resistant tube
1.Inner layer with Polyurethane tubing to keep good flexibility under very low temperature, good elasticity.

2.Light weight 30% than two layers anti spatter tube
Samlongda new design PU anti spatter tubing for automation, automobile welding system.

1. The working temperature -20 to +70 degree.

2. Inner Wall of PU tubing is very smooth for transporting.

3. Frame resistance: UL 94 V0 grade.

4. PU is environmental material, our PU tubes reach SGS standards!

5. Widely used in Pneumatic automation system, Air tools,automobile welding system.


Code Size(mm) W.P.(Mpa) Structure Standard Length(m)
O.D I.D
RF0604 6 4 10 PU 100
RF0805 8 5 8 PU 100
RF1055 10 6.5 8 PU 100
RF1208 12 8 10 PU 100
