Spark tube

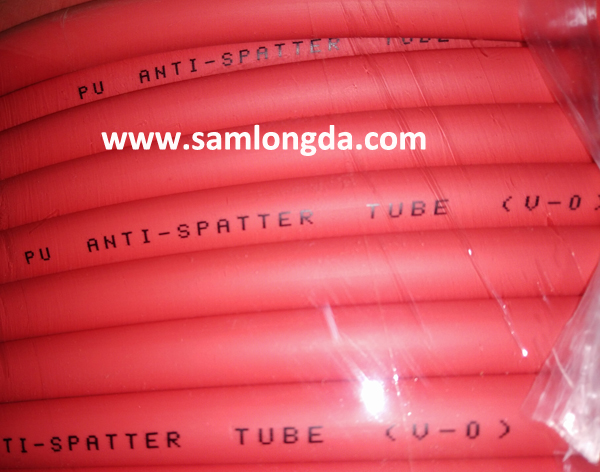

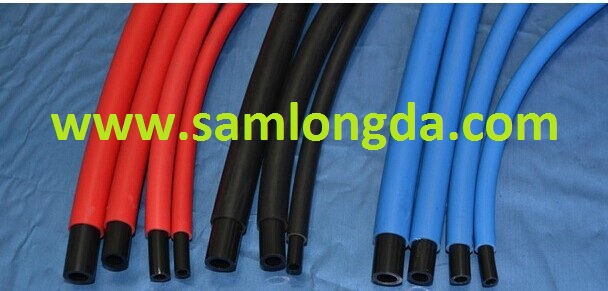

Spark Tube
*High quality design for pneumatic welding robot.
*UL 94 V-0 Grade flame resistand.
*RoHS compliant
*Two Layer design.


Samlongda Anti Spark Tubing protection from sparks and weld spatter are some of the most challenging requirements faced in many arc or spot welding applications.:

1. Inner layer with Polyurethane tubing to keep good flexibility under very low temperature, good elasticity.
Outer coated with high quality PVC resin as outer tubing.

2. New design Anti Spark tuing with Pretty high intensity, abrasion resistant and long service life, Small bending radius.

3. Light weight, high grade of transparency, anti-corrosion on partly chemical material, New products have hydrolysis resistant on Ether based PU tube.

Code Size(mm) W.P.(Mpa) Structure Standard Length(m)
O.D I.D
RF0604 6 4 10 PVC+PU 100
RF0806 8 5 8 PVC+PU 100
RF1075 10 6.5 8 PVC+PU 100
RF1209 12 8 10 PVC+PU 100
